eTrain — quiet, zero-emission visitor transport
Modular electric road train
Overview
A modular electric road train for tourism, leisure, resorts, parks, historic centres and other visitor-transport applications.
A fully electric, solar-supported on-road train with an operating range of up to 135 km per charge at a permissible speed of 25 km/h. Re-charging is possible within 30 minutes, and the roof-mounted solar panels provide several kilometres of additional range per hour of sunshine. On-road homologation is available for specific market configurations, with gradeability of up to 25 %. Low noise and zero local emissions.

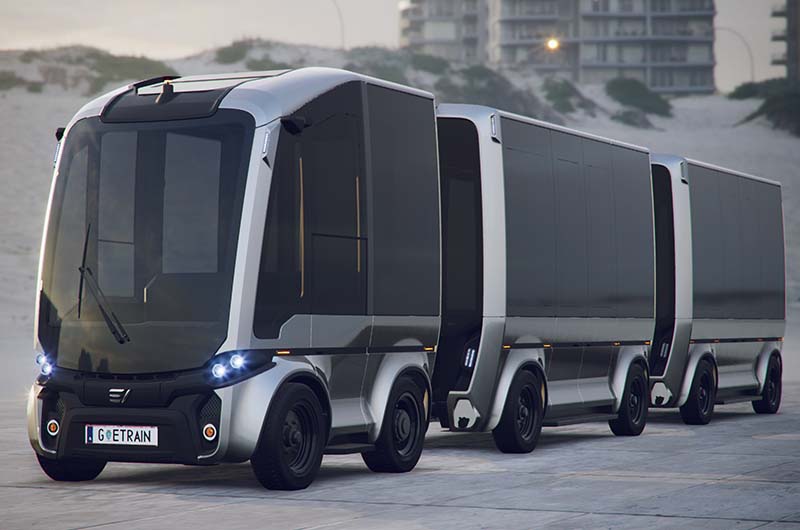

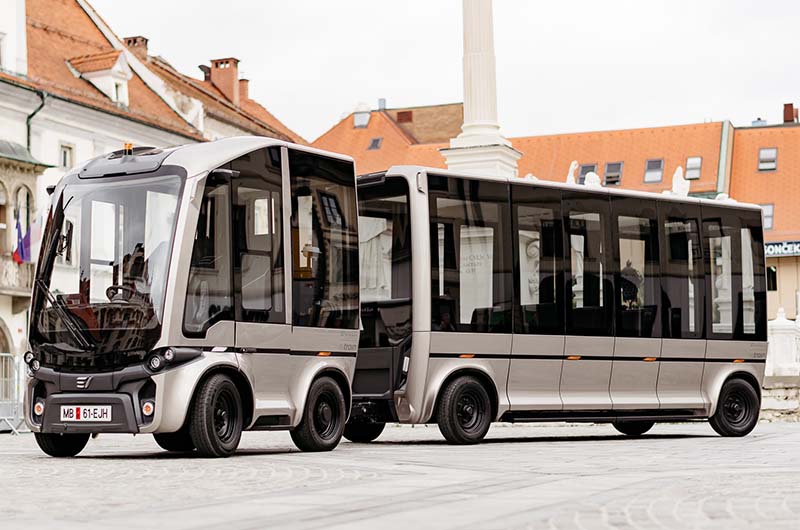

The eTrain comprises an electric locomotive and up to three trailers in S, M and L sizes. The locomotive is driven by 2 × 15 kW electric motors with a combined towing capacity of more than 30 tonnes, power steering on the front axle and an electronic differential (torque vectoring) on the rear wheels; the independent drive axles feature recuperation braking. Wagons offer various seat and door configurations, all-wheel steering for a minimum turning circle, configurable interior design and a manually operated wheelchair ramp. The train is built on a high-alloy steel chassis with a GRP lightweight body, torsion-spring suspension on all axles, pneumatic service brakes, electrically actuated parking brakes, safety-glass windows and a heating and air-conditioning system.
Driver plus one passenger in the locomotive; up to 14 passengers in Trailer S, up to 22 in Trailer M and up to 34 in Trailer L. Maximum passenger capacity per train is 68, depending on configuration.
Li-ion battery packs of 66 or 88 kWh, selected according to the required duty cycle and vehicle configuration.
Up to 135 km per charge, measured at 75 % load on flat terrain. Actual operating range depends on configuration, payload, topography, climate and operating profile.
Re-charging within 30 minutes under defined charging conditions. Charger power and state-of-charge window are configuration-specific and will be published following technical sign-off.
Maximum permitted speed of 25 km/h and gradeability of up to 25 %, supporting operation on demanding site and visitor routes.
Roof-mounted solar panels support the vehicle's auxiliary systems and provide several kilometres of additional range per hour of sunshine, depending on irradiation and operating conditions.
On-road homologation is available for specific market configurations. Road-use approval depends on the market and the selected configuration; eVersum supports the approval process on a project basis. Contact eVersum for the status in your market.
Specifications depend on configuration, operating profile, climate and approval requirements and may change without notice.
Model overview
| Dimensions | Locomotive | Trailer S | Trailer M | Trailer L |
|---|---|---|---|---|
| DIMENSIONS | ||||
| Length [m] | 2.85 | 3.90 | 5.40 | 6.90 |
| Width [m] | 1.80 | 2.30 | 1.80 | 2.30 | 1.80 | 2.30 | 1.80 | 2.30 |
| No of seats | Driver +1 | up to 14 | up to 22 | up to 34 |
| Trailers per train | - - | up to 3 | up to 2 | up to 2 |
| Max. passenger capacity per train | - - | 42 | 44 | 68 |
| PERFORMANCE | ||||
| Maximum permitted speed [km/h] | 25 | |||
| Operating range [km] | up to 135 | |||
| Gradeability [%] | up to 25 | |||
| Drive power [kW] | 2 × 15 | |||
| Battery capacity [kWh] | 66 or 88 |
Specifications depend on configuration, operating profile, climate and approval requirements and may change without notice.
