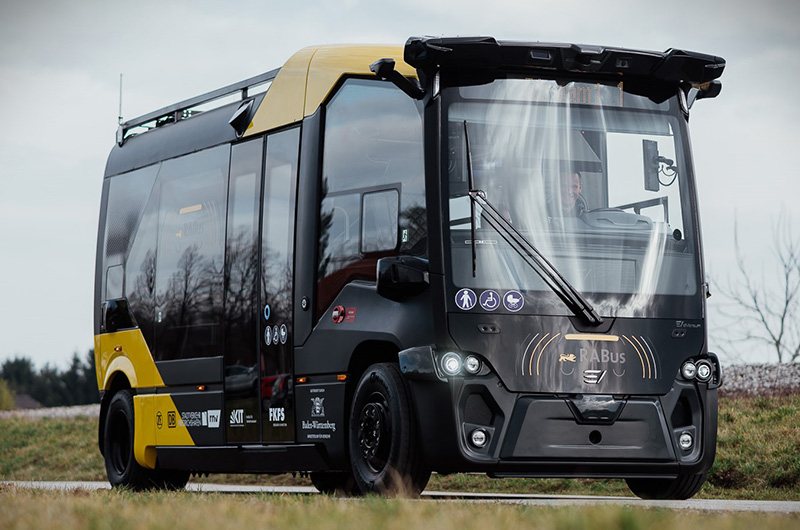

AD-ready eShuttle
A road-capable vehicle platform for automated-driving integration
AD-ready eShuttle
A road-capable vehicle platform for automated-driving integration
eVersum provides the electric M3 vehicle, redundant actuation architecture, vehicle controls and interfaces required to integrate a specialist third-party automated-driving system.
Status of the vehicle as delivered
The base eShuttle AD-ready vehicle is delivered as an SAE L0 vehicle unless a separately contracted automated-driving system has been integrated, validated and authorised. The architecture is designed to support L3/L4 use cases within a defined operational design domain. The achieved automation level is project- and system-specific.
Responsibility split
Third-party automated-driving system (SDS) partner — perception, localisation, prediction, planning and automated-driving compute.
Joint integration — interfaces, control allocation, safety concept, operational design domain, validation and the regulatory case.
eVersum — vehicle platform, redundant steering, propulsion and actuation interfaces, safety power supply, embedded vehicle control, diagnostics and vehicle-level integration.
Use-case modules
Public transport — feeder routes, low-demand corridors and first/last-mile services on defined, repeatable alignments, operated conventionally today and prepared for staged automated operation with an SDS partner.
Airports — airside and landside passenger transfer between terminals, remote stands and car parks, where route geometry, speeds and access control support a clearly bounded operational design domain.
Ports and campuses — industrial sites, business parks, port areas and visitor destinations with private or semi-private road networks and controlled traffic.
Validation fleets — small series of instrumented, redundantly actuated vehicles for SDS partners, research programmes and operators building evidence for validation and regulatory authorisation.
Model Overview

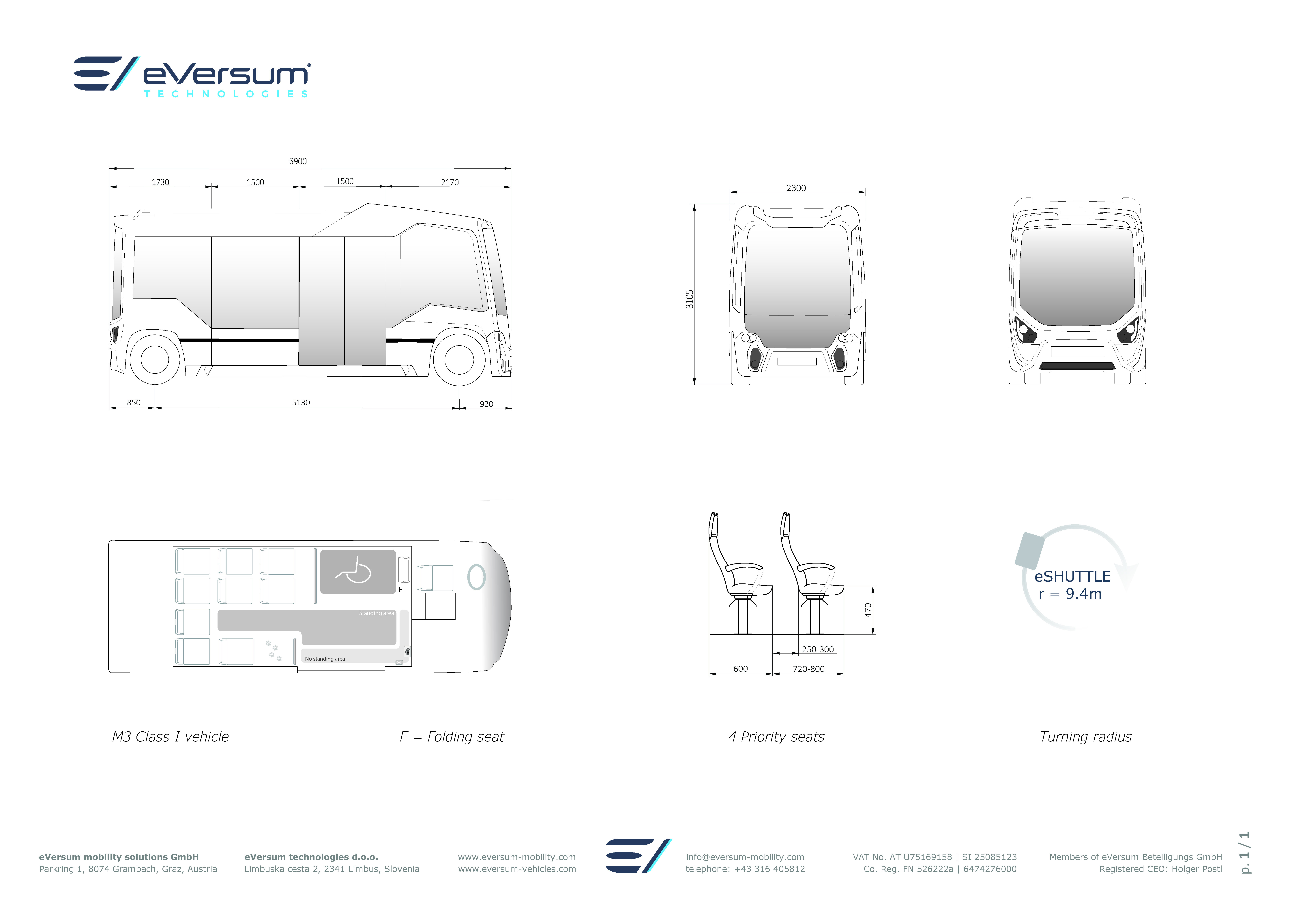

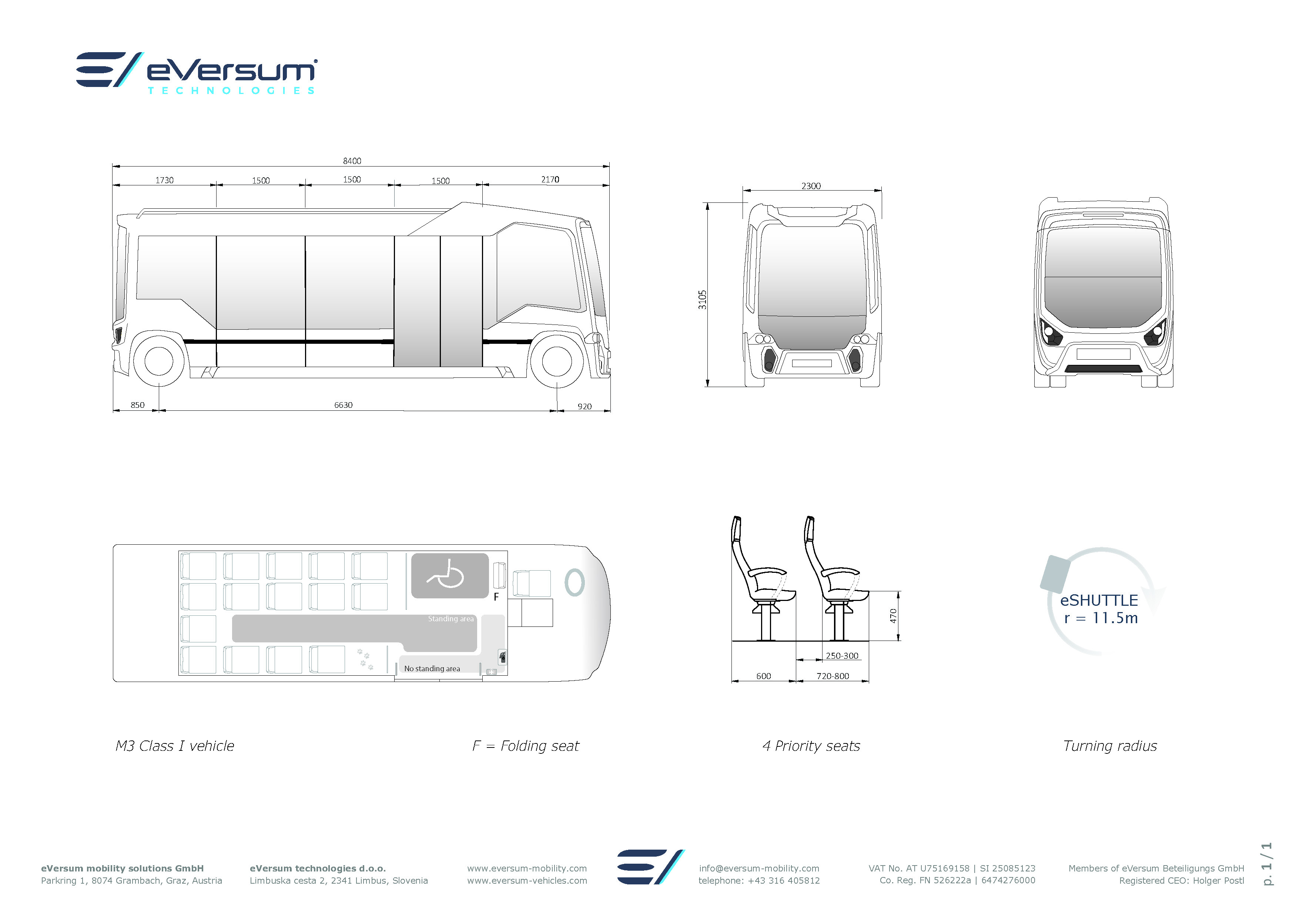

| MODEL | AD-ready 6.9 m | AD-ready 8.4 m |
|---|---|---|
| DIMENSIONS | ||
| Length | Width | Height [m] | 6.9 | 2.30 | 3.10 | 8.40 | 2.30 | 3.10 |
| Kerb weight | Permissible GVW [t] | 7.5 | 12.00 | 8.5 | 12.00 |
| Turning radius [m] | 9.4 | 11.5 |
| Entry height [m] | 0.25 - 0.30 | 0.25 - 0.30 |
| DRIVE TRAIN & PERFORMANCE | ||
| Norm speed [km/h] | 80 | 80 |
| Gradeability (%) | 25 | 25 |
| Nominal voltage [V] | 650 | 650 |
| Battery capacity | modular NMC system, selected for duty cycle, vehicle length, passenger load and climatic conditions | |
| On-board charger [kW] | 22 | 22 |
| Suspension system | Air & Kneeling | Air & Kneeling |
| Brake system | ECE 2-circuit + recuperation | ECE 2-circuit + recuperation |
| BODY & EQUIPMENT | ||
| Passenger capacity [pax @ 75 kg/person] | up to 35 | up to 45 |
| Door type | electric, rapid-sliding | electric, rapid-sliding |
| Floor configuration | full low floor | full low floor |
| Wheelchair ramp | manual or electric | manual or electric |
| Infotainment | all options available | all options available |
Specifications depend on configuration, operating profile, climate and approval requirements and may change without notice. Values apply to the base vehicle without an integrated automated-driving system.
